JAVWELD PROFESSIONAL WELDING PRODUCTS

The Javweld Pro machines boast state of the art features to satisfy and surprise even the most discerning of welders.

On aluminium welding you enjoy Square wave, Sine Wave as well as Triangular wave with fingertip amperage control or wireless foot pedal. Our machines have MCU control for accurate modular setting and ease of use.

The range consists of:

MMA Welding Inverters



MEGATEC MMA 160 BLACK SERIES

MegaTec MMA 160

Suitable for maintenance and repairs
– Lightweight – 3.2Kg
– Over-current and over voltage protection

MEGATEC MMA 200 BLACK SERIES

MMA welding machine Archives | Fourie Welding and Tool Wholesale

– Suitable for maintenance and repairs
– Lightweight – 3.2Kg
– Over-current and over voltage protection

JAVWELD MMA 200 SKYARC INVERTER

JAVWELD MMA 200 Skyarc Inverter Welder – 200A DC Stick & Lift TIG with VRD & ARC Force

  Current Range: 10-200A
– Features: Lift TIG, VRD, ARC Force
– Mining, light fabrication and repairs
– OCV 14V – 60% Duty cycle @ 40



MEGATEC D-ARC-230

INVERTER D-ARC230 (MEG) WITH TIG TORCH

MMA 220A 220V
– Synergic Arc welder with Lift TIG, VRD, hot start and ARC force
adjustments
– Mining industry, maintenance and light fabrication
– Digital display
– Large dinse connectors for better current flow
– High duty cycle
– Light and portable

JAVWELD MMA 250-3 380V/525V



– Mining edition
– Adjustable Hot start, Anti-stick & Arc force automatic
– Digital display
– Protection: Equipped with temperature, voltage and current sensors
– VRD (Voltage Reducing Device) for improved safety (13V)
– MMA 250A / 60% duty cycle

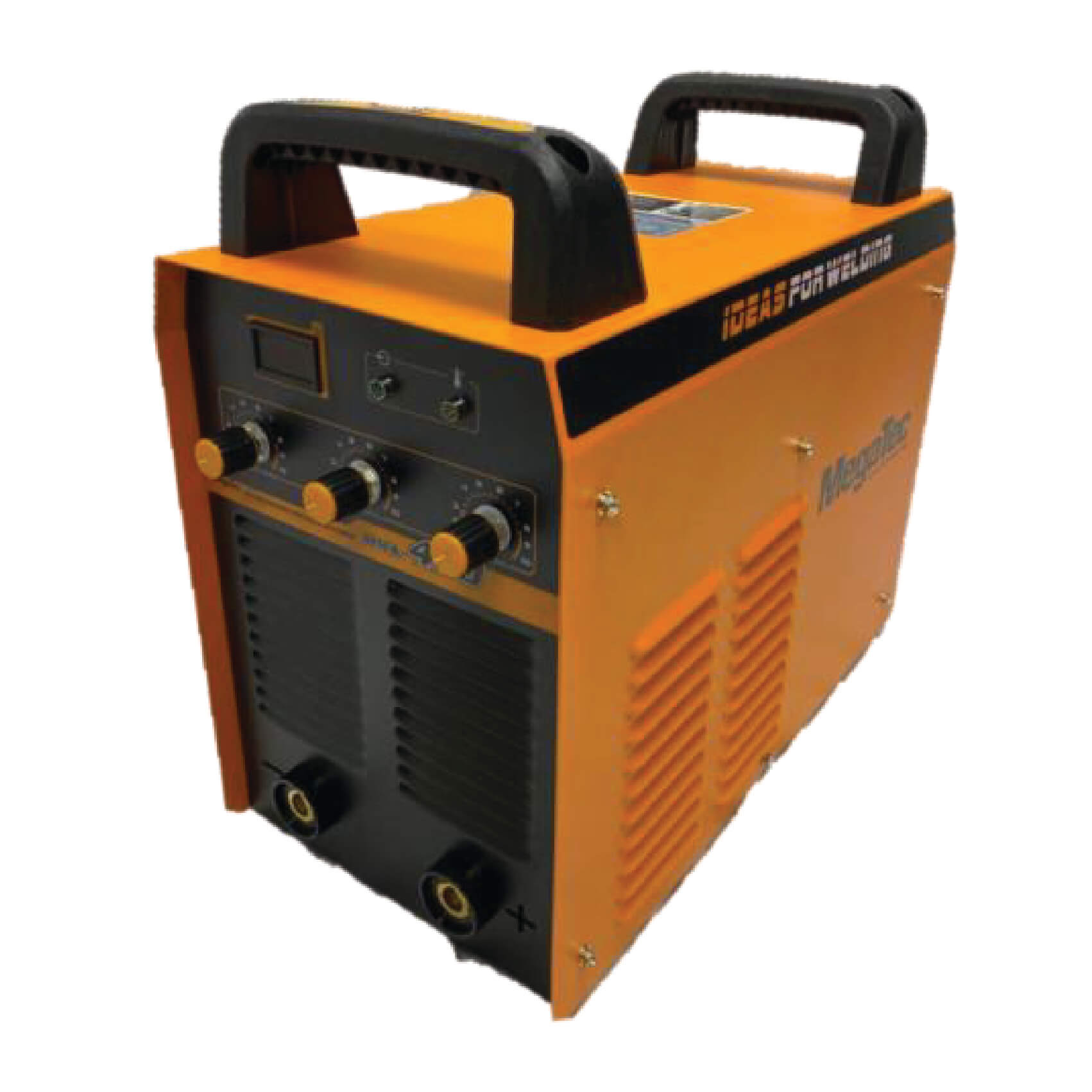

MEGATEC 400A DC MMA INVERTER

Powerful 400A Arc welder with 60% duty cycle
– For heavy fabrication and continuous production
– Hot start and ARC force adjustments
– Easy welding of low hydrogen and iron powder electrodes
– Digital display
– Over-load protection



TIG Welders

JAVWELD HE SERIES TIG 200P HF DC PFC LCD RED SCREEN

– LCD Screen
– 2T/4T/Manual pulsing
– Job Save function
– Torch fingertip amperage control ready
– Q-Start
– Dynamic ARC
– Multitack



JAVWELD HE TIG 250 AC/DC LCD BLUE SCREEN

– LCD Screen
– 2T/4T/Manual pulsing
– Mixed AC/DC
– Extra fusion
– Multi-wave
– Spot & Pulse mode
– Job Save function
– Torch fingertip amperage control ready
– Q-Start
– Dynamic ARC
– Multi-tack

JAVWELD TIG KT230 AC/DC LCD SCREEN

JAVWELD TIG KT230 AC/DC Inverter Welder – LCD Control Panel for Precision TIG Welding

AC Wave Forms; Square Wave; Sine Wave & Triangular Wave
& Waveform manipulation
– Full pulse Tig function with great low amperage start up – 2 AMP
– Capability of amperage control on TIG torch
– IPS Colour screen
– Program and store settings & Advanced Smart TIG
– Adjustable AC frequency up to 250 HZ
– Advanced Tig SIC plaform
– AC/DC Mix – Extra Fusion / Multi-tack / Dynamic Arc
– Lift TIG & MMA
– Hot start & Arc force adjustable
– Insulation Class: H

JAVWELD HE SERIES TIG 400 DC PULSE LCD BLUE SCREEN

LCD Screen
– 2T/4T/Manual pulsing
– Spot & Pulse mode
– Job Save function
– Torch fingertip amperage control ready
– Q-Start
– Dynamic ARC
– Multitack

JAVWELD HE SERIES TIG 400 AC/DC LCD BLUE SCREEN

LCD Screen
– 2T/4T/Manual pulsing
– Mixed AC/DC
– Extra fusion
– Multi-wave
– Spot & Pulse mode
– Job Safe function
– Torch fingertip amperage control ready
– Q-Start
– Dynamic ARC
– Multitack



MIG Welders

MEGATEC 180A 220V MULTI-PROCESS WELDER

MegaTeg 180AMP 220V Multi-Process Welder – Mayday Equipment

– Multi-process welder MIG/MAG/MMA
– Air-cooled
– Adjustable Arc force
– Temperature and over-current thermostatic control
– Digital display
– Inductance manipulation
– 5Kg Wire capacity

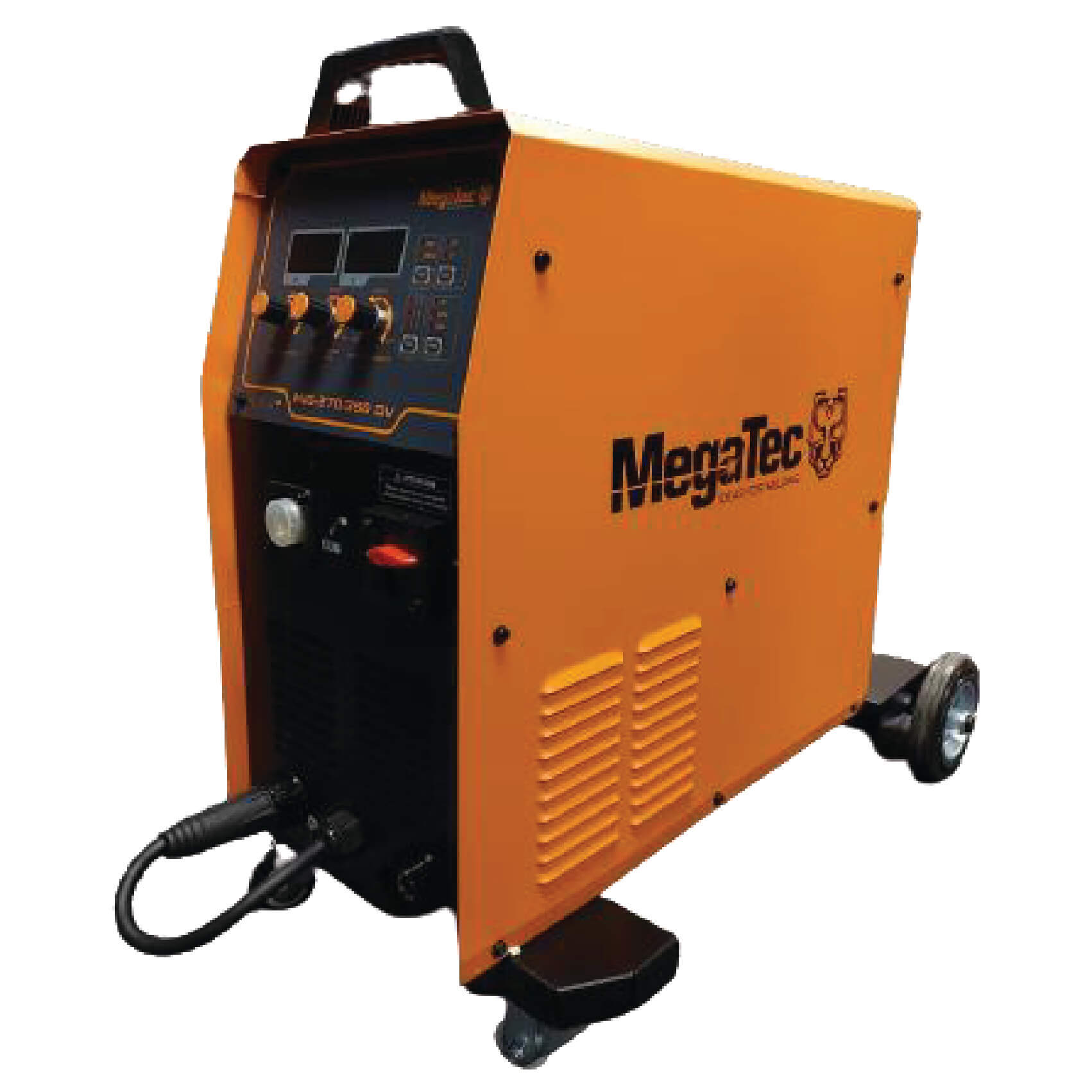

MEGATEC PROMIG 250T WITH UNDER CARRIAGE



MEGATEC PROMIG 250ET

– Single phase synergic 250A power source – 15Kg reel
– Inductance adjustment for puddle control
– Under carriage for quick and easy movement
– Multi-process allows for CO2 / MMA & Lift TIG welding features
– Digital display
– Specific aluminium welding function
– 100% Duty cycle @ 180A
– 60% Duty cycle @ 250A
– 220V
JW-FM-

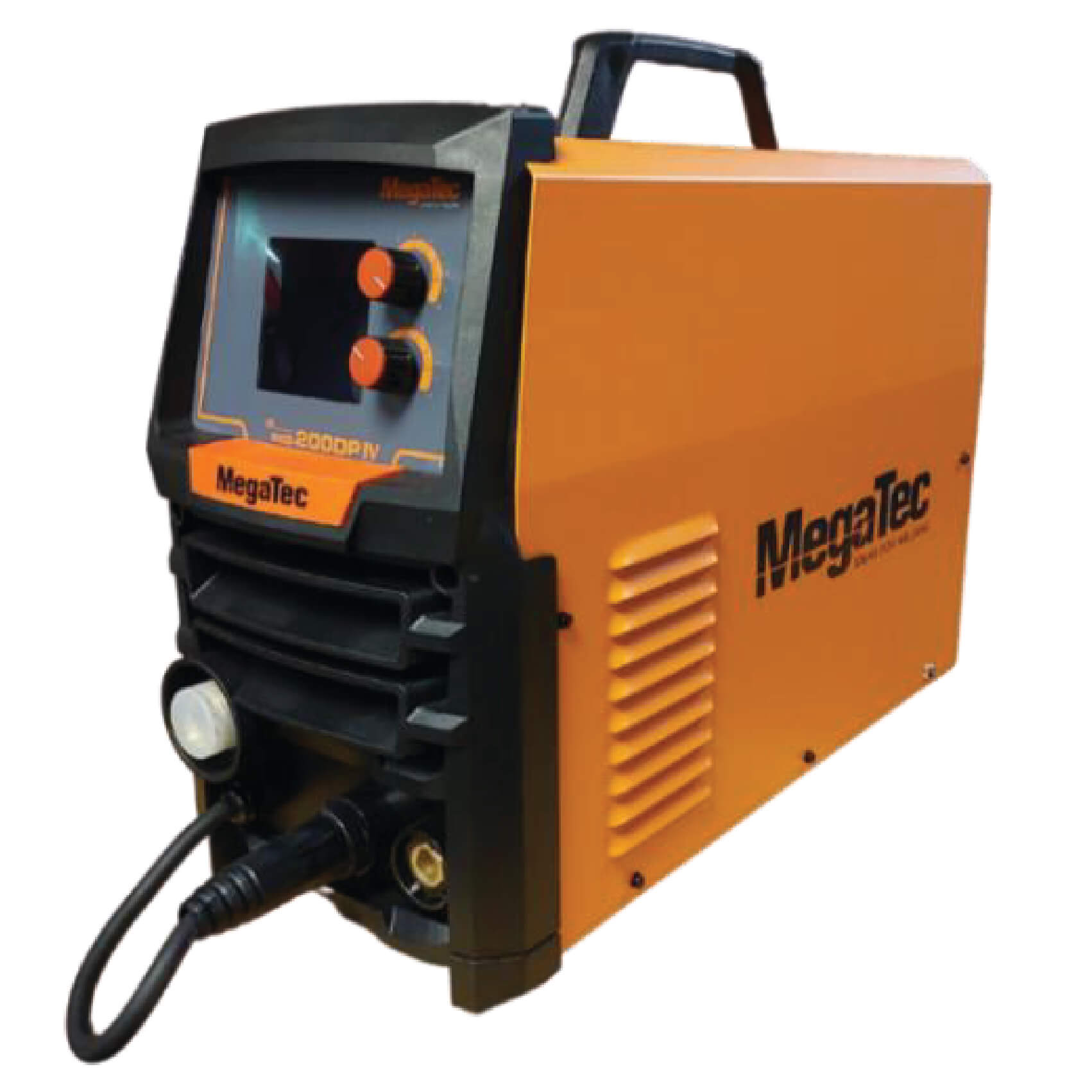

|MEGATEC INMIG 200DP

MIG/MMA/Single Pulse/Double Pulse/Lift TIG
– LCD colour display
– Synergic adjustment
– Ideal for aluminium MIG pulse welding application



JAVWELD HE SERSIES MULTI MIG 250DP PFC

Dual pulse synergic functions to eliminate spatter while welding
and Lift TIG capabiities whilst using an HF trigger torch
– Allows for activating devoted pulse curves for mild steel, stainless
steel, aluminium and CuSi3
– Job save function
– Downslope and post gas for Lift TIG
– 4 roller drive for better wire feed ability
– Waveform control for added stability of the arc, even on low
currents
– Digital display
– Equipped with temperature, voltage and current
protecting sensors

JAVWELD MIG 350A 380V

Javweld MIG 350A Welding Machine — TSA Welding Supplies

– Serarate wire feeder (8Mtr inter-connecting cable)
– Stitch welding and spot welding
– Step transformer
– 4 Roller drive
– LED display
– 350 Amp 60% duty cycle



MEGATEC MIG 350T

Synergic 350A power source – 15Kg reel
– Inductance adjustment for puddle control
– Under carriage for quick and easy movement
– Multi-process allows for CO2 / MMA
– Digital display
– Adjustable ARC force in MMA function
– 100% Duty cycle @ 270A
– 60% Duty cycle @ 350A
– 380V

JAVWELD MIG 500A 380V



Javweld MIG 350A Welding Machine — TSA Welding Supplies

– Serarate wire feeder (8Mtr inter-connecting cable)
– Stitch welding and spot welding
– Step transformer
– 4 Roller drive
– LED display
– 500 Amp 60% duty cycle



JAVWELD MULTIMIG 350S 380V DUAL PULSE C02

– Pulse and dual pulse (Devoted pulse curves for aluminium,
stainless steel, etc.)
– Complete range of synergic programs
– Wave form control for better Arc stability
– Programmable with Job Save function
– Lift TIG capability with Down Slope
– MMA equipped with temperature, voltage and current sensors
– 350 Amp 60% duty cycle

JAVWELD MULTIMIG 500S 380V DUAL PULS

Pulse and dual pulse (Devoted pulse curves for aluminium,
stainless steel, etc.)
– Complete range of synergic programs
– Wave form control for better Arc stability
– Programmable with Job Save function
– Lift TIG capability with Down Slope
– MMA equipped with temperature, voltage and current sensors
– 500 Amp 60% duty cycle



In today’s harsh manufacturing environment productivity is paramount and investing in the right equipment is the key to any successful enterprise.
